Maliwal Residence - 4th Axis Design Studio

Maliwal Residence, Nanded, Maharashtra – 4th Axis Design Studio

Designed by 4th Axis Design Studio, the residence houses a family with two sons, one of who is married, who require a home with spaces that will keep all members connected while also simultaneously enabling each member to enjoy their own private spaces.
Maliwal Residence - 4th Axis Design Studio

Follow ArchitectureLive! Channel on WhatsApp

Maliwal Residence, Nanded, Maharashtra - 4th Axis Design Studio 1

Architectural Firm: 4th Axis Design Studio
Photographer: Hemant Patil

Courtyards – the charming tool that served as the heart that tied up various units of the joint families residing in traditional Indian households, even as it worked to control the climatic comfort within – have a proven timeless value.

This very tool helps us create an infinitely spacious, well-lit and airy home for the Maliwals’ joint, albeit small, family, out of an exterior articulated in a mass of cubes.

The residence houses a family with two sons, one of who is married, who require a home with spaces that will keep all members connected while also simultaneously enabling each member to enjoy their own private spaces.

Maliwal Residence, Nanded, Maharashtra - 4th Axis Design Studio 3

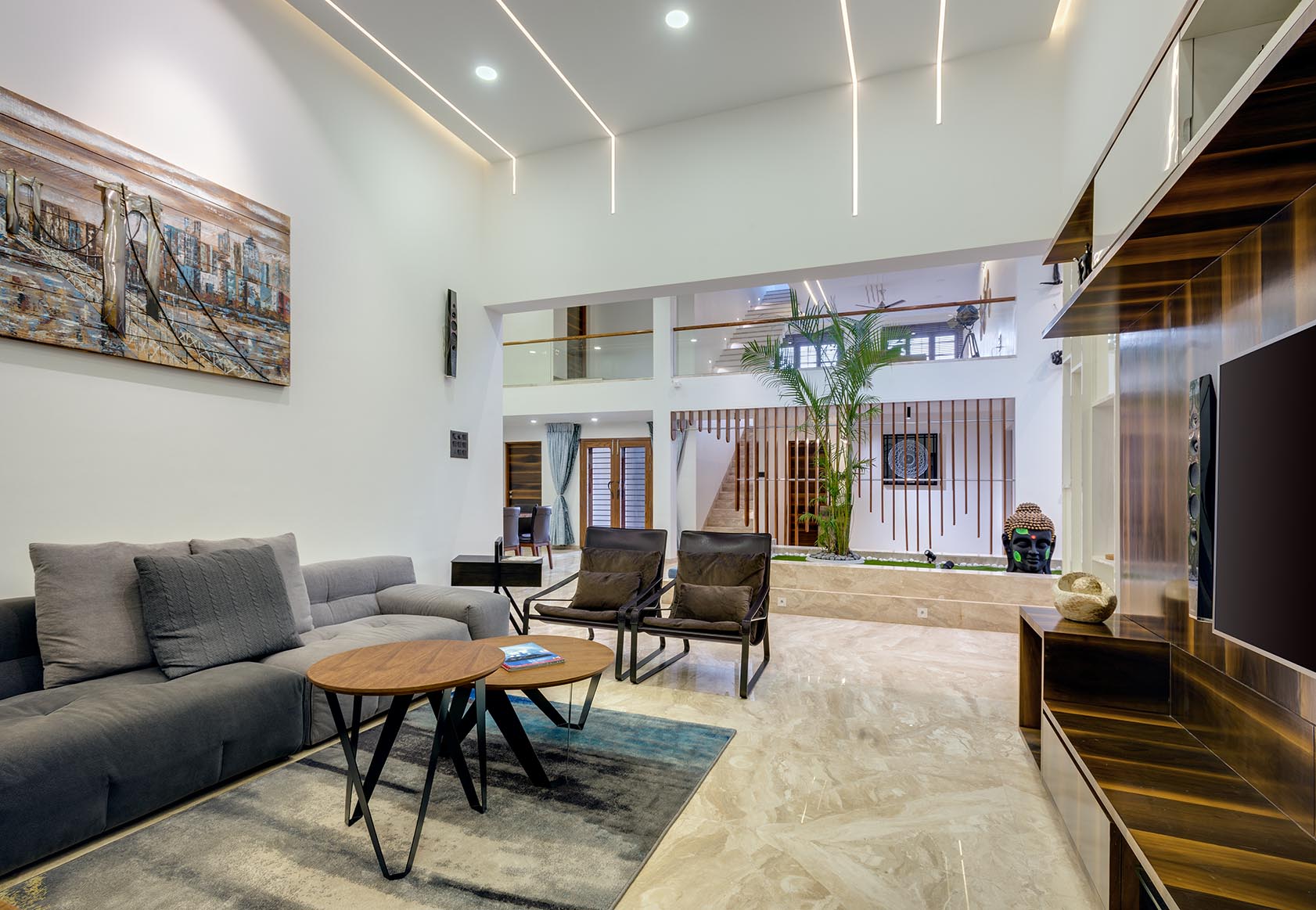

The ground floor rooms are laid out around a vast covered courtyard with a large rectangular skylight fitted with a grid of decorative glass tiles that lets sunlight flood in to light up every corner, even as the harsh heat is kept at bay. A seamless connection across all spaces is ensured by totally avoiding walls in the interface of the surrounding rooms with this courtyard.

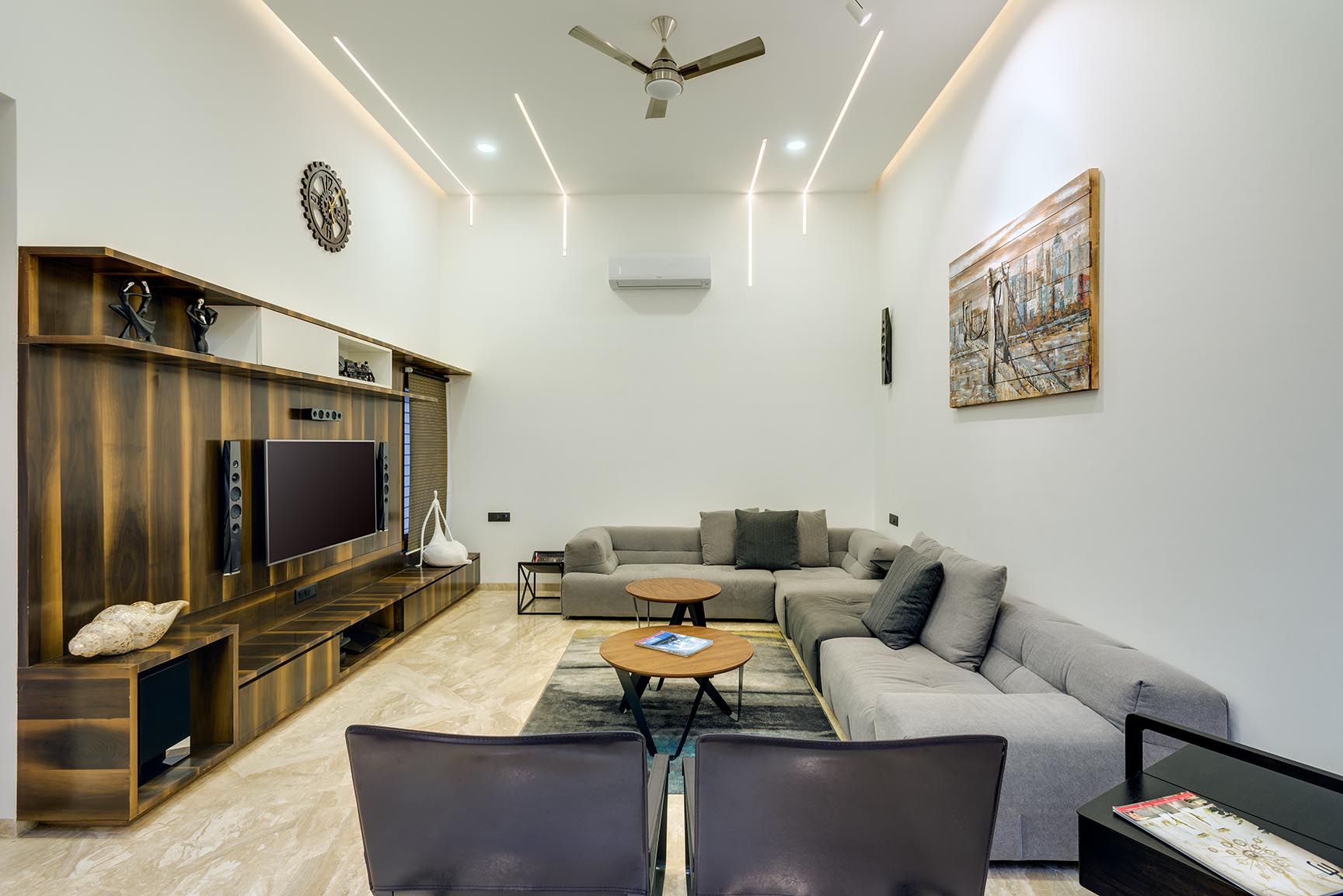

The minimal and elegant dining table placed at the head of the court negotiates through a breakfast counter with a large and neat open kitchen, which is adequately concealed from direct view thanks to its corner location. The living room enjoys accentuated volume due to an enhanced height coupled with continual bright white surface finishes embellished with subtle slit lights and minimal, clean lined furnishings.

Maliwal Residence, Nanded, Maharashtra - 4th Axis Design Studio 5

The wave form of a panel of wooden battens that screens various entrances to a bedroom, a powder room and the stairs also serves as an elegant backdrop to the landscaped square at the courtyard’s centre. A pooja room paired with a study finds seclusion behind a glass door, next to which the only strip of wall in the court bears metallic miniatures of athletic humans scaling its imposing height.

More common areas like the hobby and family rooms have been amply accommodated on the next floor which, having an intimate height of 8 feet, slips into the rear portion of the layout almost inscrutably.These upper level spaces overlook the central courtyard and dining area over a glass railing thanks to which visual linkages now extend across the expanse as well as the various levels. The marble floor finish which has been carried through the generously wide stairway to both floors helps to enhance the feeling of openness.

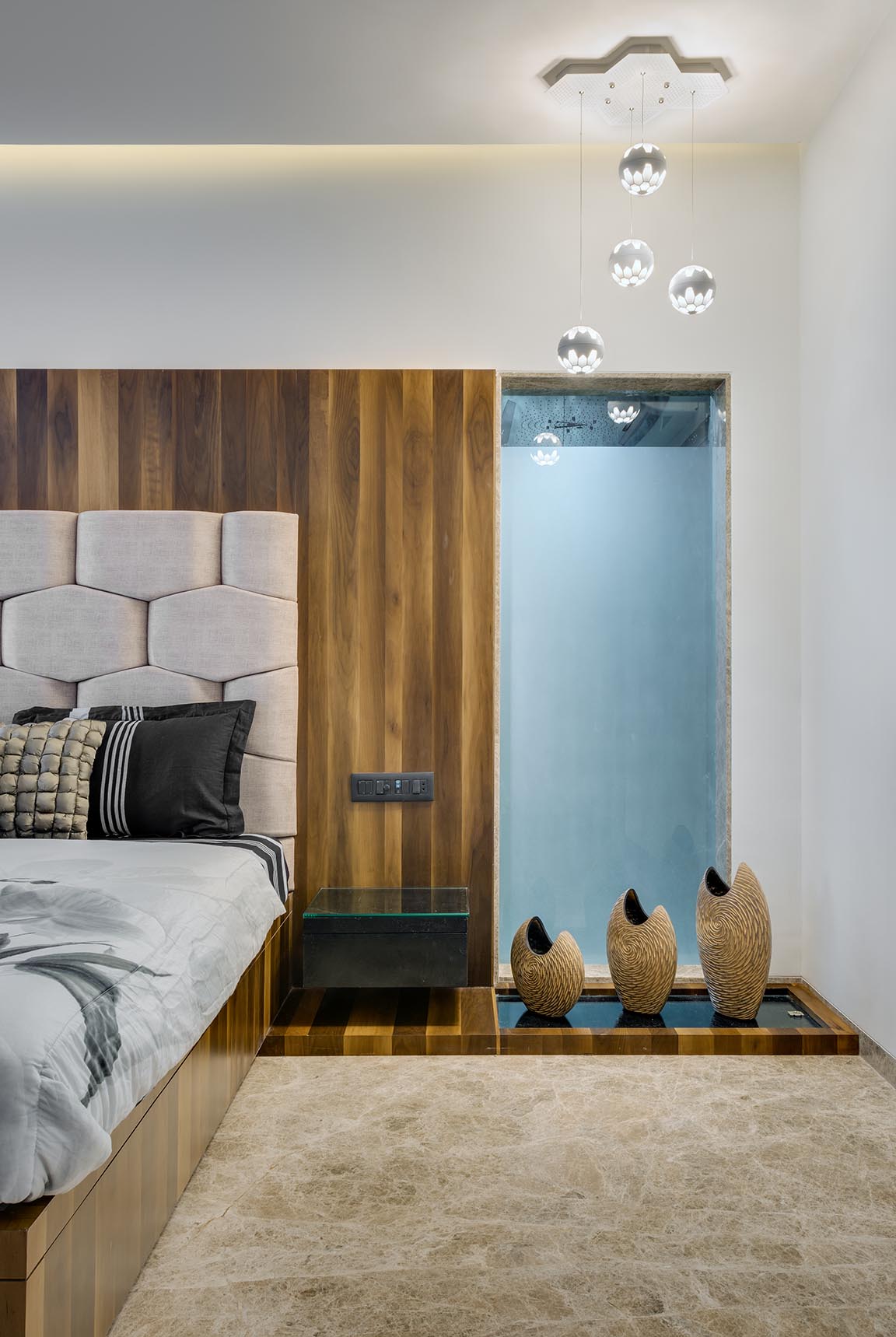

A few steps up from each of these informal mid-level spaces lead to the three bedroom suites on the top-most level. Conveniently tucked into private corners of the home’s layout, each of these five bedrooms on both floors comes with its own attached walk-in wardrobe and washroom. Comfortable, richly finished contemporary furnishings have been used to caringly detail each of the bedrooms.

The use of simple tools like a central light filled courtyard and phased outward progression of layers from common to personal spaces using a little help from split levels has yielded very satisfying results for both client and designer. We were able to deliver on the optimal balance between connectivity and seclusion, common and private, minimal and luxurious. At the same time, climatic control goals were addressed by having minimal apertures on the sunny western face by lining it with services and stairs.

The exterior spaces have been neatly divided between manicured lawns, planters with blooms, elements of flowing water and paved pathways. A larger gate opens to a driveway leading up to the covered carpark, while a smaller gate lets a paved walkway lead to the main entrance which, emphasised in a flaming yellow cube, stands out among the grey mass of the rest of the cubes forming the façade. The quarters for the house help are discreetly accommodated in the corner behind the carpark, and a semi-covered space that falls on the western front has been fitted with a decked floor and sporting graphics on the wall to be utilised for sports and games – an extension, in fact, of the garden in front of it.

We created a contemporised paraphrase of a traditional house with rooms around a courtyard, where the household remains closely knit around familial ties yet each member enjoys the privileges suited to the Maliwal family’s modern lifestyle.



Project Facts:

Project Name: Maliwal Residence, Nanded, India
Architects: 4th Axis Design Studio, Pune, India
Lead Architects : Ar. Sagar Mundada, Ar. Amit Kasliwal,
Design Team: Pushkarni, Prashant , Ankita, Shriya, Sunil
Client: G Maliwal
Office Website:
Contact Email: 4ads@4thaxis
Project Year: 2018
Built up Area: 6200 sqft
Plot Area: 10,000 sqft
Location: Nanded, Maharashtra state, India
Photographer: Hemant Patil
Structural Consultant: P.S. Kulkarni, Pune
Materials Used: glass, wood, marble floor
