UDAAN at Mumbai by Sameep Padora and Associates- Architect

UDAAN, low cost mass housing project at Mumbai by Sameep Padora and Associates

The approach explores the flexibility available in the clever repetition of a module. The project, being precast pods, can be executed with speed and allows for a number of units that can be configured to suit individual requirements of space for individual families over time. - Sameep Padora and Associates
UDAAN at Mumbai by Sameep Padora and Associates- Architect

UDAAN at Mumbai by Sameep Padora and Associates- Architect

Escalating land prices in Mumbai is forcing out the families that serve the privileged classes. The domestic help, drivers, sweepers, peons etc are the invisible cogs that daily ensure smooth running of the city. Currently they are being dis-housed from their decades old housing, since this has caught the eye of developers; and they are forced to relocate further from their primary sources of income. Currently, this segment forms 50-60 % of the urban population of Mumbai. The commute between home and work thus becomes a critical factor in site selection. If this isn’t handled adequately (eg, the commute is a 2hr+ journey each way), the new homes get rented out and the people return to squat closer to their places of work.

The issue at hand is to provide:

  1. well connected
  2. low-cost
  3. mass housing
  4. matching growing aspirations

for the large service sector population. This should also have the capacity to grow incrementally as these new settlements grow in popularity.

Thus, for site selection, connectivity to public transport networks becomes a critical factor. If such land parcels, which have clear

records, can be identified, procured and ear marked, the entire project can develop in tandem with the MRTS network.

The Solution:

The solution is multi-pronged-

A. Site- Well connected, adequately sized to upscale

B. Execution/Technology- Precast concrete modules/wet pods serving as structural elements

But most critically,

C. Design- a modular, but non-repetitive scheme, with a mix of 1 Room Kitchen (RK) and 1 Bedroom Kitchen (BHK), which can be combined to form permutations suiting the fluid requirements of users, with a minimum area of 300sq.ft as mandated.

Community spaces like a ration shop, crèche, a gym, a gathering space that have been built into the design to foster a sense of community.

The Site:

A 19770 sq.mt plot is within 10 minutes walking distance from Bhivpuri station, Karjat. This is on the Central railway route between Neral and Karjat. It is also connected to NH4 and has road links to both Panvel/Navi Mumbai and Badlapur/Thane.

The FSI for this area is 1.2

The Design:

The approach explores the flexibility available in clever repetition of a module. The project, being precast pods, can be executed with speed and allows for a number of units that can be configured to suit individual requirements of space for individual families over time.

UDAAN at Mumbai by Sameep Padora and Associates- Architect

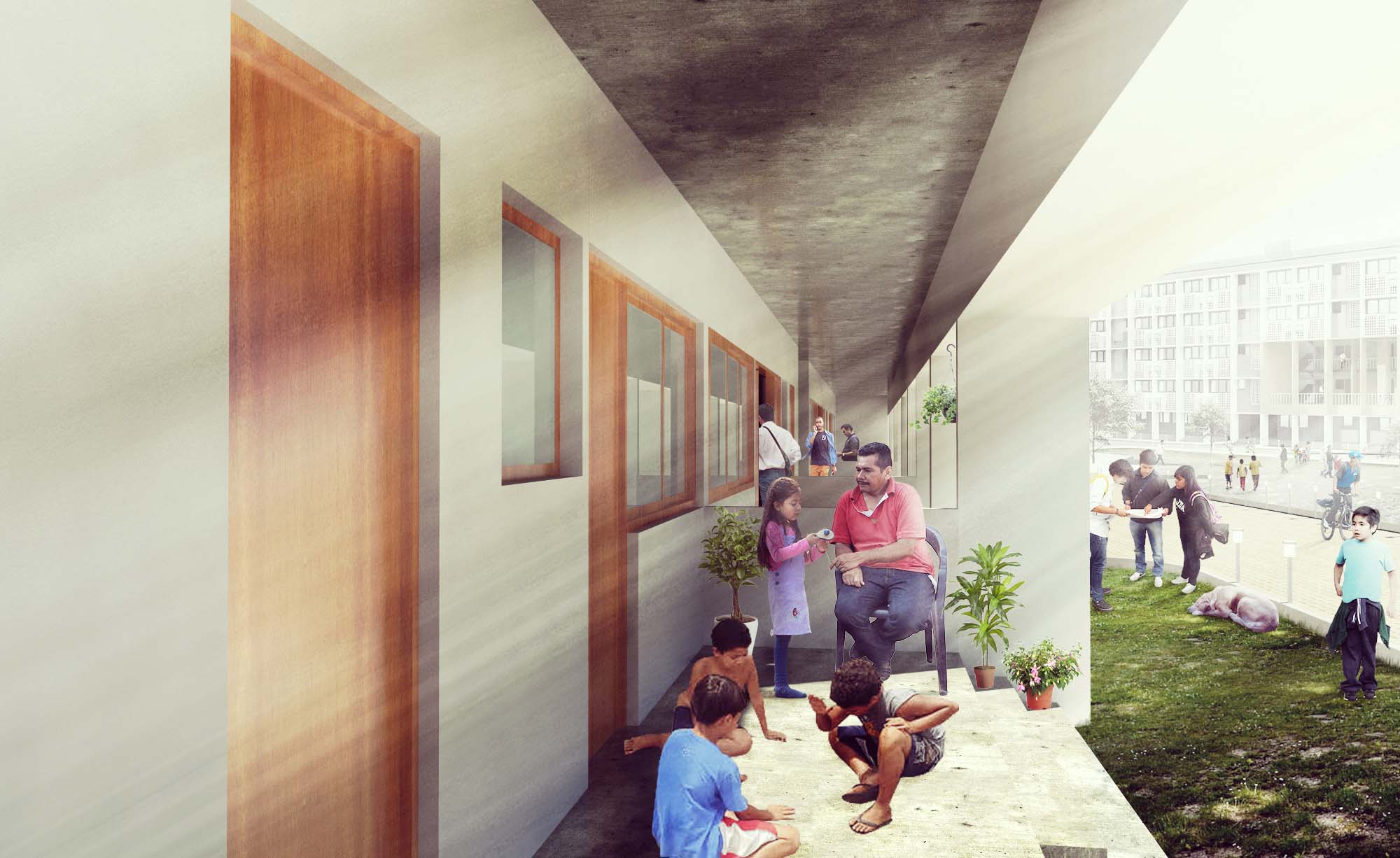

At the same time, rather than consolidating the 10% amenity into the de-facto club house disconnected from daily use, the design integrated it as a series of dispersed common social programs throughout the building. Since residents would pass by these on a regular day to day basis, the chance of these being maintained well were also much higher.

Being a low-rise building the users experience a closer connection to the ground.

Total BUA proposed: 19080 sq.mt

Total Units proposed (assuming 300 sq.ft): 522

Phase wise allocation:

Phase 1: 255

Phase 2: 267

UDAAN at Mumbai by Sameep Padora and Associates- Architect
Concept

Unit Design– Many iterations to the 300 sq.ft unit finally led to a module that served the requirements of a low income, yet upwardly mobile family.

Learning from the research into indigenous housing typologies, for migrant workers in Mumbai, led to four variant designs based on the same grid. Each satisfied the requirements of a particular type of family.

  1. 1 RK
  2. 1 BHK
  3. Mezzanine Unit
  4. Mixed Unit

All the unit types are clubbed together in the same building, allowing a mix of user groups and creating a richer social fabric. All units have an identical width of 3.6mt (approx 12ft) which is generated by the Wet Pod requirements 3.6×1.5m.

Climatic considerations:

Based on extensive studies of housing typologies in Mumbai, with its humid climate, the most effective way to ensure comfort conditions is by providing cross ventilation as far as possible. The design addresses this by using the staggered corridors to have cross ventilation through each unit and vertically ventilate the community/corridor areas by staggering the corridors and generating a stack effect cooling through the sloping roof over the circulation zone.

UDAAN at Mumbai by Sameep Padora and Associates- Architect
APPLIED RESEARCH

Scalability:

The idea of scalability works at many levels here. There is already preset 4 typologies that can be selected depending on the current needs of each family, using the same module width of 3.6m

The individual unit is scalable by joining adjacent units when the family scales up in size and economics. The precast building technology ensures that the building phases can be scaled up with minimum disruption to the existing structure.

Feasibility and Speed of Construction:

The design is modular. The Wet Pods also act as structural, precast, loadbearing modules between which the slabs are spanned and eliminate the need for extra columns and beams. Since part of the building module is fabricated off-site and simply put into place on site, the actual time taken for construction is much less than a conventional RCC framed one both in terms of time and labour involved. Different techniques of precast technology were explored before settling for the load bearing, precast pod system. Through this method, we are able to build upto G+4 in 21 days as opposed to casting one slab in 21 days using conventional RCC frame construction.

The precast method of construction also has the potential for production at an industrial scale with integrated basic services.

– Sameep Padora and Associates
